World Class PAT System Repair & Refurbishment
The BTS Tech™ team of crane repair technicians take great pride in being some of the world’s most knowledgeable and effective crane repair technicians. With over 35 years of crane industry experience we provide expert crane repair, refurbishment, calibration, and parts for the crane rental, rigging, construction, and refinery industries.
Worldwide Crane Parts
Bode Technical Service has developed one of the larges parts network in the world providing crane parts for all major manufacturers. Our parts team can source parts from multiple distributors in multiple countries. Let us do the work to find the best price and availability for you.
Some PAT Systems
Hirschmann DS 160
The DS-160 is an economical upgrade solution for Manitex cranes with existing DS-50 load moment indicators. The DS-160 provides crane owners with a combination of the latest technology while incorporating many of the existing proven sensors and components. All set up is done through the user-friendly operator’s console, with no costly and time consuming re-calibration.
Hirschmann EI 65
The EI 65 indicator system was developed in response to the needs of the crane owner to improve the efficiency and productivity of their operations. The system displays all geometric and load data along with the hoist selection and parts of line. With this information and the crane’s load chart the operator has the information needed to work within the crane’s working limits.

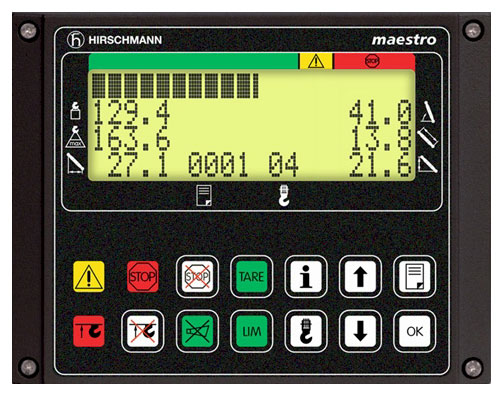

Hirschmann Maestro
The Hirschmann maestro is an economical upgrade solution for many of the existing PAT load moment indicators that are currently in the field and in need of parts or repair. The Hirschmann maestro provides crane owners with a combination of the latest technology while incorporating many of the existing proven sensors and components. All set up is done through the user-friendly operator’s console, with no costly and time consuming re-calibration.
Hirschmann Mark 4K
The Mark 4K displays a full range of precise information in the operator’s cab. Designed for use on mobile cranes, the Mark 4K is installed and calibrated to the load chart of each crane – including specific load and geometric limits on boom length, angle, and operating radius, Due to its various display options, the Mark 4K meets the requirements of even the most demanding cranes with many configurations. The Mark 4K load moment indicator gives the operator the information necessary to fully utilize the crane’s capacity while keeping within the working limits of the crane.
Hirschmann PRS 40 EZ
The PRS 40 EZ’s flexible design allows for monitoring single or multiple sensor inputs in wireless and hardwired applications. The system can monitor up to two wireless and one hardwired sensor at the same time, giving the operator the versatility to combine wireless and hardwired sensors. In the wireless applications the PRS 40 EZ utilizes Frequency Hopping Spread Spectrum Technology (FHSS) which transmits on one of 25 different channels to ensure accurate and consistent reception of data. FHSS also provides additional protection against interference common to construction job sites.
Hirschmann PRS 80 EZ
The PRS 80 EZ’s flexible design allows for monitoring single or multiple sensor inputs. The sensor inputs are displayed on a large back-lite graphic display which is capable of displaying up to seven sensors at one time. The PRS 80 EZ utilizes Frequency Hopping Spread Spectrum Technology (FHSS) which transmits on one of the 25 different channels to ensure accurate and consistent reception of data. FHSS also provides additional protection against interference common to construction job sites.
Hirschmann PRS 145
The PRS 145 displays a full range of precise information in the operator’s cab. Designed for use on mobile cranes, the PRS 145 is installed and calibrated to the load chart of each crane – including specific load and geometric limits on boom length, angle, and operating radius. The PRS 145 load moment indicator gives the operator the information necessary to fully utilize the cranes capacity while keeping within the working limits of the crane.
Hirschmann Wireless Sensors
All Hirschmann wireless sensors utilize the same transmitter, allowing for easier maintenance and operation on the jobsite. Hirschmann wireless sensors are fully compatible with existing PAT or Hirschmann sensors and fit a variety of cranes
