Trimble LSI GS550 Display
settings
Home / Trimble GS550 Display
settings

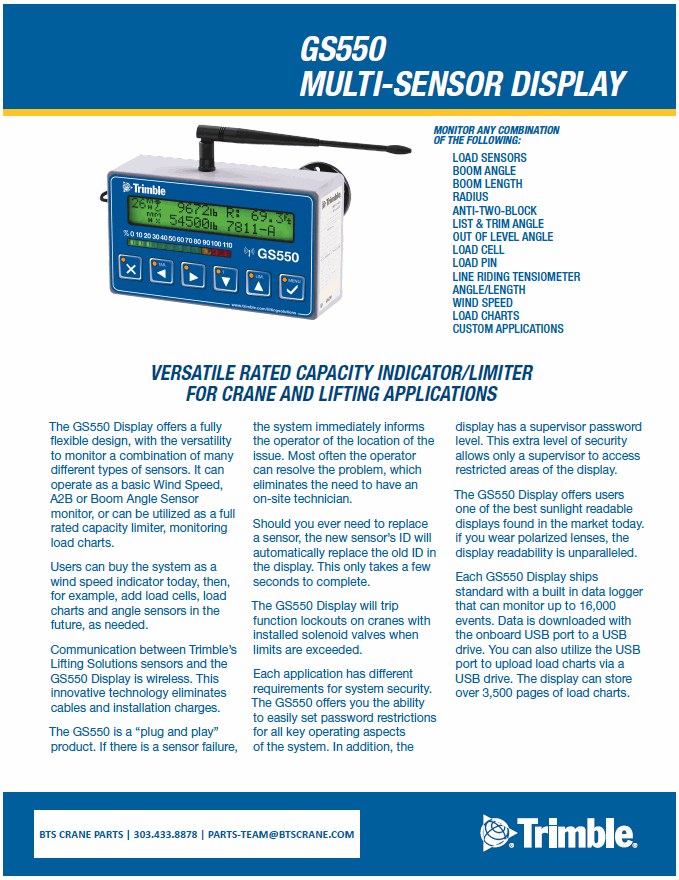

The Trimble GS 550 system includes the cabin mounted GS550 radio display and compatible crane mounted GS and GC series sensors. The GS550 display creates a two-way radio network with the sensors to bring required lift data to the operator. Hoist load, boom and jib angles, boom length, wind speed and pending two-block can be detected and then indicated to the operator in real time. Working load radius can be calculated and compared to a rated capacity chart (if programmed). Furthermore the GS550 can be programmed to generate warnings, alarms and lockout commands, all triggered by adjustable thresholds and limits. All these events can be recorded by the data logger with a time and date stamp. The exact operational function of the GS 550 system depends on the sensor configuration used and the rated capacity charts programmed (where applicable). The Trimble GS550 includes a USB port to facilitate software and chart updates and data logger downloads using a USB mass storage device (USB key)
The Trimble GS550 display eliminates the cable breaks and costly installation fees of the past. Once the ground and power wires are connected this self-install unit is ready to monitor load, angle, length, anti two block, wind speed and a selection of other sensors up to 32 units. With its six inch long sunlight readable display, rest assured that viewing in all conditions, even with polarized sunglasses, will be unparalleled. The GS550 has full capability to trigger lockouts if your crane has them installed for added safety. Full load chart capability is realized with a simple software download via the USB port on the side of the unit. Additional safety features include an optional supervisor level access password and full datalogger capabilities monitoring up to 16,000 events.
The Trimble GS550 display eliminates the cable breaks and costly installation fees of the past. Once the ground and power wires are connected this self-install unit is ready to monitor load, angle, length, anti two block, wind speed and a selection of other sensors up to 32 units. With its six inch long sunlight readable display, rest assured that viewing in all conditions, even with polarized sunglasses, will be unparalleled. The GS550 has full capability to trigger lockouts if your crane has them installed for added safety. Full load chart capability is realized with a simple software download via the USB port on the side of the unit. Additional safety features include an optional supervisor level access password and full datalogger capabilities monitoring up to 16,000 events.
settings
Trimble GS550 - Plug and Play Solution
settings
LSI Trimble GS550 display serves as the backbone of the wireless crane warning system. The unit integrates both the display and operator interface as well as the computer that manages all the sensors and monitors the crane load chart. The Trimble GS550 console utilizes direct sequence spread spectrum two way communication to reliably monitor up to 32 sensors in the harshest radio frequency environments with a reception range up to 4,300 feet. A 6"long sunlight readable 2 line LCD display allows the operator a simple yet comprehensive overview of crane operations.
It can start as a basic Wind Speed, Anti Two Block, Load, or Boom Length Angle system, or can be utilized as a full rated capacity indicator, monitoring load charts. All communication between LSI sensors and the GS550 Display is wireless. This innovative technology eliminates cables and costly installation charges. Wireless communication will help you avoid expensive and time consuming troubleshooting of cable breaks, junction boxes and more.
It can start as a basic Wind Speed, Anti Two Block, Load, or Boom Length Angle system, or can be utilized as a full rated capacity indicator, monitoring load charts. All communication between LSI sensors and the GS550 Display is wireless. This innovative technology eliminates cables and costly installation charges. Wireless communication will help you avoid expensive and time consuming troubleshooting of cable breaks, junction boxes and more.
settings
settings
settings
The Trimble GS550 offers a simple user install "Plug & Play" solution for your crane LMI replacement needs
settings
BTS is Always Availabe
settings
Our store is open 24 hours a day 7 days a week
settings
In an effort to provide the most immediate support for your buying decision we have provided as much information as possible on this page and in our online store. We look forward to working with you.
settings

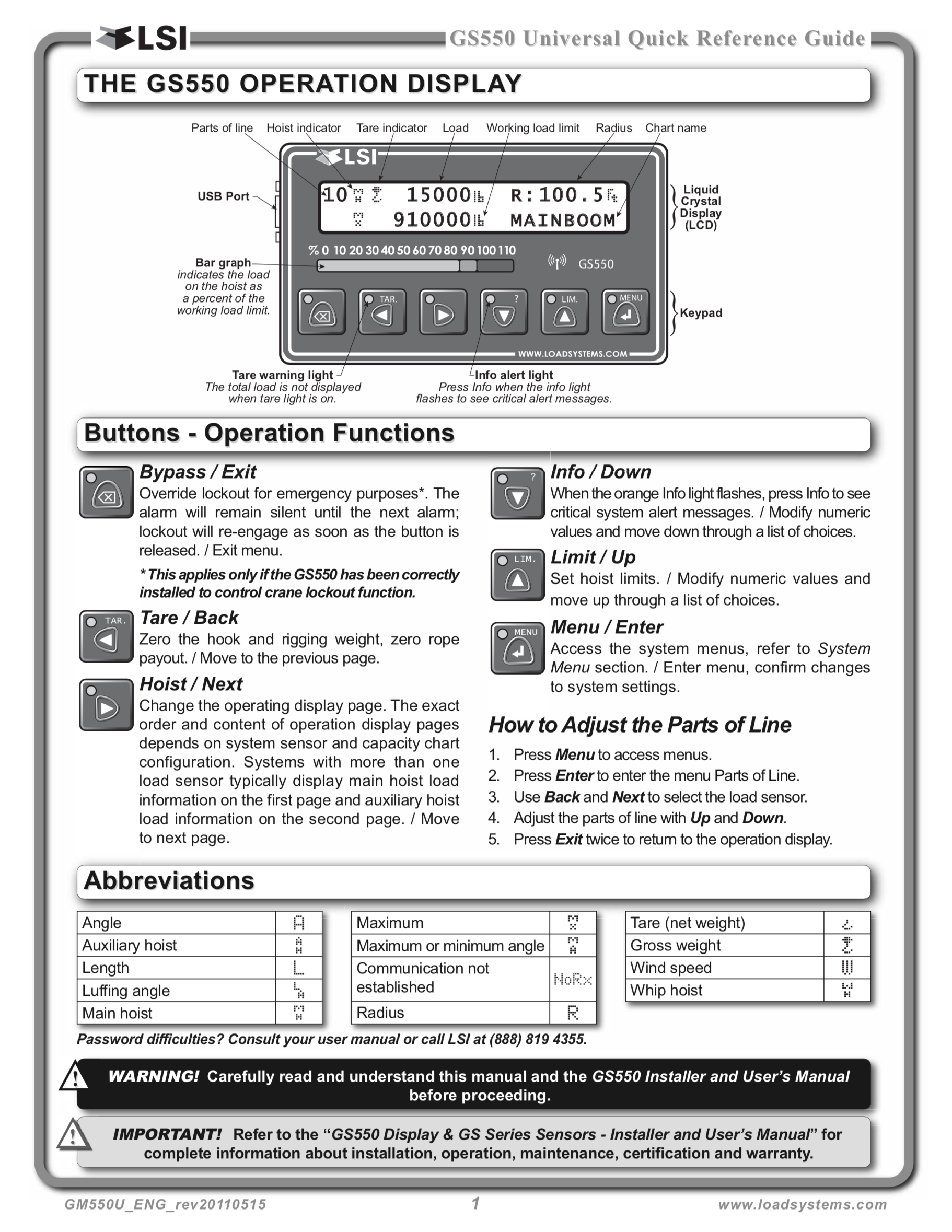

Trimble GS550 - Quick Reference Guide
settings
BTS Customers receive a Free Quick Reference Guide for operators to keep with them. You can see a similar version here.
settings
The GS550 is a “plug and play” product. If there is a sensor failure, the system immediately informs the operator of the location of the issue. 99 percent of the time the operator can resolve the problem, which eliminates the need to have an on-site technician. Should you ever need to replace a sensor, the new sensor’s ID will automatically replace the old ID in the display. This only takes a few seconds to complete. The GS550 Display will trip function lockouts on cranes with installed solenoid valves when limits are exceeded. Each application has different requirements for system security.
arrow_drop_down_circle
Divider Text
settings
... how do I add or remove a sensor from my Trimble GS550 display...
settings
This has to be one of the most requested service questions we get. At BTS Crane Parts were not only committed to providing you with the greatest value when you purchase, but also supporting you when you need help with your product. We strive to assure that our customers have whatever support they need to run their operations smoothly.
arrow_drop_down_circle
Divider Text
settings
Thanks for visiting! If we can help in any way please reach out.
settings
CRANE COMPUTER REPLACEMENT
settings
TRIMBLE GS550
settings
With over 15 years of parts supply experience, rest assured that the BTS Parts Team can find the right solution for your need. Please feel free to reach out to us any time for further assistance, we are always glad to share our insights.
